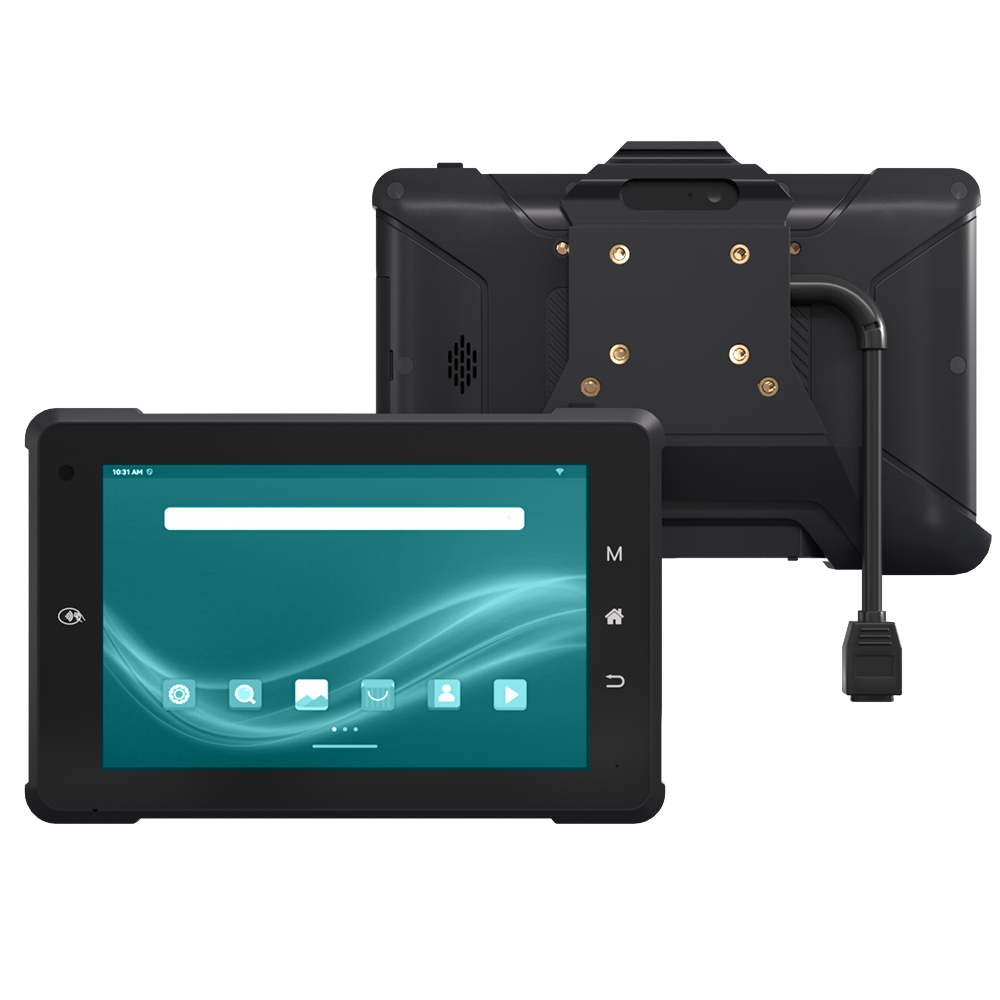

Hitekon TitanTab 7 Mobile Rugged Tablet - 7" Android Rugged Smart Device
Hitekon TitanTab 7 Mobile Rugged Tablet - 7" Android Rugged Smart Device
Hitekon TitanTab 7 Mobile Rugged Tablet is Built Tough.
Hitekon TitanTab 7 Mobile Rugged Tablet is an easy-to-use 7-inch (1280x800) IP65-rated rugged Android tablet, specifically designed for use in vehicles, but tough enough to handle rough conditions outdoors. It provides users with easy installation and the ability to connect a multitude of extra peripherals.
TitanTab 7 is made for the Toughest Working Conditions
Powered by a 64bit RK3568 Quad Core Cortex-A55, the TT7 runs on Android 14 or Linux, offering robust performance. The rugged tablet integrates essential modules like Wi-Fi, Bluetooth 5.0, 4G LTE for data transmission, and NFC for identification.
For in-vehicle applications, it features a wide range of interfaces, including RS232, RS422/RS485, USB Type-C, ACC, and more, making it ideal for fleet management, public transit, intelligent mining, precision agriculture, logistics, and industrial control.
TT7 offers you the perfect blend of quality technologies, powerful performance, customization, and affordability.
View Product Sheet
Contact us for a quote.
Hitekon Mobile Rugged Tablets
Made for Tough Environments
Regardless of the environment you're in, Hitekon Rugged Tablets are built to withstand the conditions. With an IP65 rating, they continue to work in rain, snow, heat, or anything else nature throws your way.
Easy To Use
Integrates Seamlessly into Your Workflow
Hitekon Rugged Tablets are easy-to-use Android tablets that can be set up for your business before they arrive. Work with our team to have your tablets ready to use immediately.
Mobile Services
Keep Teams Connected
Keep your teams connected to important information and updates, whenever and wherever it is needed with WiFi and 4G LTE services.
Versatile Component Interfaces
Connect Accessories for Greater Versatility
Hitekon Mobile Rugged Tablets provide a multitude of interfaces and mounting options for any peripheral accessories you may need or want to use.
| Category | Specification |
|---|---|
| Processor | RockChip 64bit RK3568 Quad Core Cortex-A55 (up to 2.0GHz) |
| Graphics | Mail-G52 800MHz GPU |
| NPU | Up to 1TOPS |
| RAM | 4GB LPDDR4 |
| ROM | 32GB eMMC (Upgrades Optional) |
| Operating System | Android 14 |
| Dimensions (LxWxD) | 7.8" x 5.1" x 0.8" |
| Weight | 1.03lb |
| Screen Resolution | 1280 x 800 |
| Screen Brightness | 350cd/m2 |
| Screen Contrast | 800:1 |
| Touch Panel | 5-Point Capacitive Touchscreen |
| Audio | 1.5W Internal Speaker, Stereo Speaker, Earphone Jack |
| Network Connectivity | 4G or 5G Module (Optional) |
| Global Positioning | Supports GPS/GLONASS/BEIDOU External GPS receiver/antenna (Optional) |
| WiFi | Supports 802.11 a/b/g/n/ac Dual-band 2.4GHz & 5GHz |
| Video Capabilities | Decode: 4K H.264/H2.65/VP9 Profile 0/2 video decode 1080p multi-video decode | Encode: 1080P video encoding for H.264 & H.265 |
| Audio Capabilities | Supports MP3, WAV, WMA 9/Pro, OGG, FLAC, AAC, AMR-NB/-WB |
| Speaker / Microphone | 1.5W Internal / Built-in Mic |
| Camera | 2.0MP CMOS (Front) | 5.0MP CMOS (Back) |
| Connectivity | Reverse Gear Trigger, RS232, RS422 (RS485 Optional), SIM Card Slot, NFC, RFID Card Slot, AHD Camera-In, TF Card Slot (Up to 128GB), POGO Pin (20 Pin) |
| NFC | ISO/IEC 14443 A&B MiFare® 1K/4K, FeliCa, NFC Forum Type 1-5, ISO/IEC 15693 |
| USB / Data Ports | Type C |
| Control Buttons | Power, Home, Menu, Return |
| Power Supply | 12V DC (9~36V) |
| Power Consumption | Normal Mode: <= 9W, Charging Mode: <= 12.5W |
| Battery | 3.7V 5000mAh, Lithium-Polymer (3 hour run-time) |
| Compliance | FCC, C2E, ISO7637-2, ISO10605, ISO16750-2 |
| Mounting | VESA, RAM, Double-T Compliant |
| IP Rating | IP65 |
| Accessories | AC/DC Adapter, Car Adapter, Docking Station Kit, External GPS Receiver/Antenna (Optional), ADH Camera - 720P/1080P (Optional) |
