Hitekon CareLink 10 Medical Infotainment Terminal - 10.1" Android Smart Device

Hitekon CareLink 10 Medical Infotainment Terminal - 10.1" Android Smart Device

Hitekon CareLink 10 Medical Infotainment Terminal





Hitekon CareLink 10 Medical Infotainment Terminal is an easy-to-use 10.1" Android touchscreen device, specifically designed for hospitals and the clinical environment. It provides patients with entertainment, communication, self-service and even education options. It offers you the perfect blend of quality technologies, powerful performance, customization, and affordability.

Key Features & Functions

  • Patient Entertainment: TV, movies, music, games, web browsing.

  • Communication: Video calls, messaging, VoIP phone, connecting with family.

  • Patient Education: Access to condition-specific info, treatment videos, exercise guides, multilingual support.

  • Care Management: Ordering meals, controlling room settings (lights, blinds), nurse call.

  • Clinical Integration: Secure access to Electronic Health Records (EHR) for staff, telehealth, status updates.

Benefits for Patients & Staff

  • Enhanced Experience: Reduces boredom, loneliness, and anxiety; empowers patients.

  • Improved Outcomes: Better understanding of care leads to better adherence and recovery.

  • Increased Efficiency: Automates routine requests, frees up nurses' time, supports better care coordination.

Technology & Integration

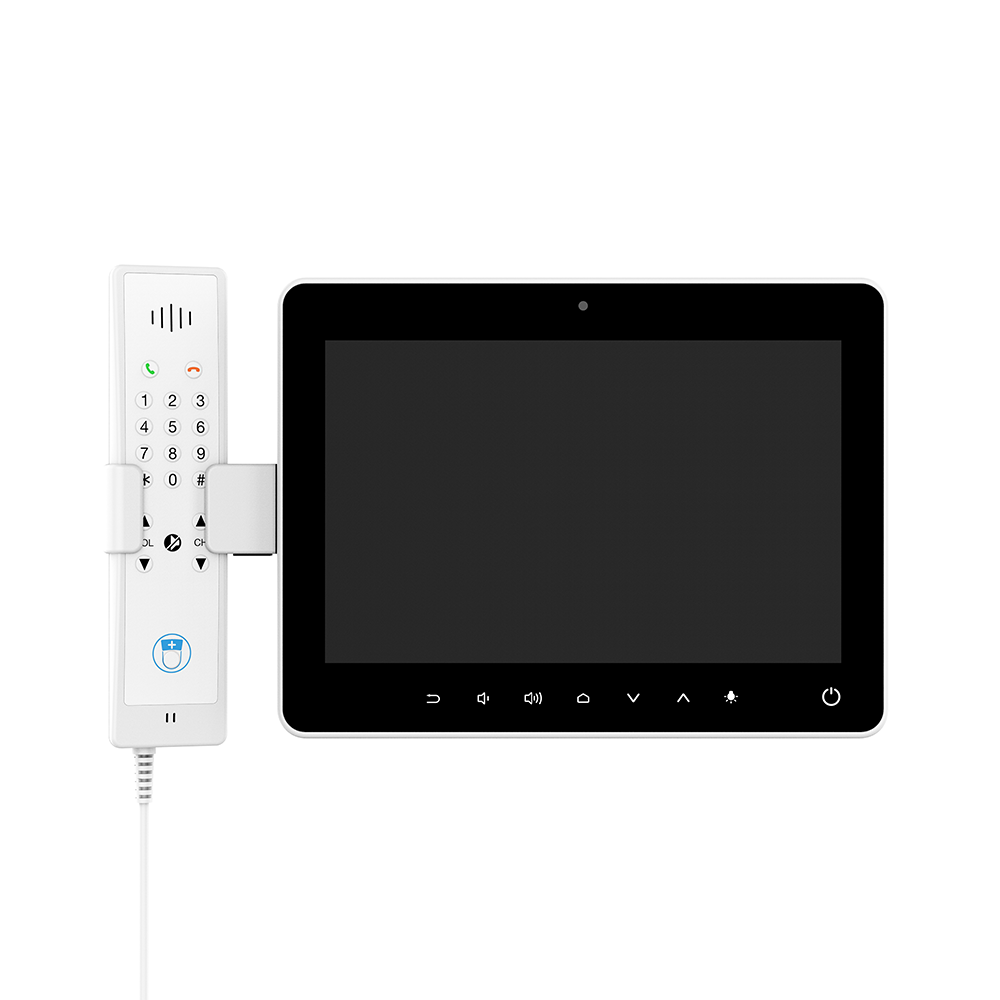

  • Hardware: Touchscreen terminals with anti-bacterial housing, integrated with cameras and optional handsets.

  • Software: Runs on Android or Linux; integrates with hospital IT, EHR, and even patient's own devices (BYOD).


View Product Sheet
View full details

Contact us for a quote.

child playing game on white medical terminal in hosptial bed

Hitekon Smart Medical Terminals

Give Patients a Way to Relax, Their Own Way.

Whether they want to watch a movie, play a game, or read a book, patients deserve the opportunity to relax how they want. Provide them with a way to escape and unwind.

woman in hospital bed on a video call with family on her medical terminal

Phone and Video Conferencing

Help Your Patients Stay Connected with Loved Ones.

Loved ones aren't always able to visit in person, so give patients the ability to contact them via phone or video conferencing, helping them to not feel alone.

a doctor shows a patient in bed their medical updates on the medical terminal

Medical Updates

Keep Patients and Employees Up-to-Date on Medical Info

Integrate your medical software to keep patients and employees connected to their medical information, whenever and wherever it is needed.

Versatile Component Interfaces

Connect Accessories for Greater Versatility

Hitekon Medical Terminals provide a multitude of interfaces and mounting options for any peripheral accessories you may need or want to use.

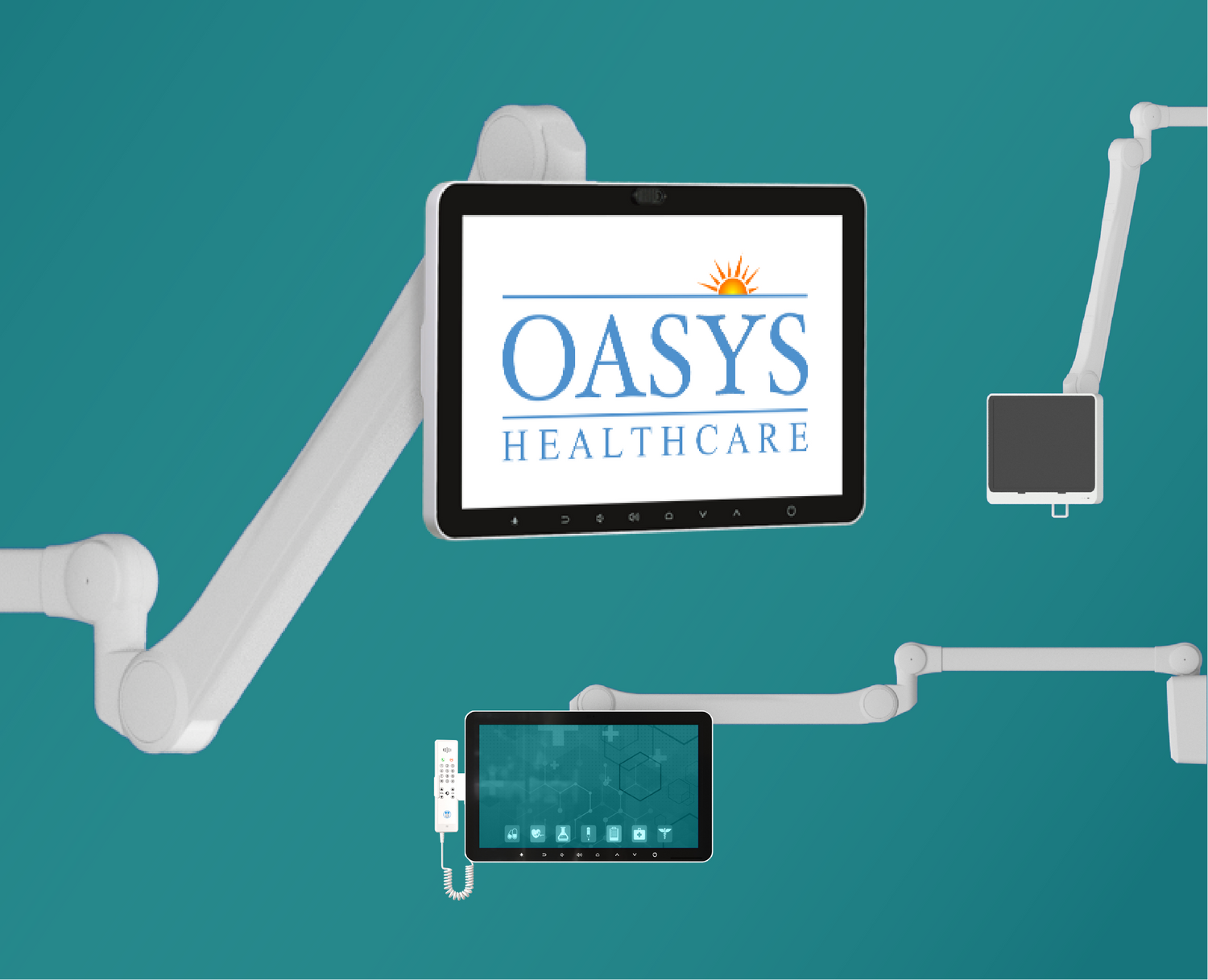

Secure, Versatile Monitor Mounting

Hitekon recommends using mounting solutions from Oasys Healthcare. They are proven to be some of the most secure and versatile mechanical mounts available.

Explore Mounts
CareLink 10 Medical Infotainment Terminal – Specifications
Category Specification
Processor RockChip RK3288 Quad Core ARM Cortex-A17 up to 1.8GHz
Graphics Integrated 2D/3D Mali-T764 GPU, up to 600MHz. Support OpenGL ES1.1/2.0./3.0, OpenVG1.1, OpenCL, DirectX11
RAM 2GB DDR3
ROM 32GB eMMC (8GB, 16GB - Optional)
Operating System Android 7.1
Dimensions (LxWxD) 10.1" x 7.6" x 1.3"
Weight 2.2lb
Screen Resolution 1280 x 800
Screen Brightness 350cd/m2
Screen Contrast 1000:1
Touch Panel 10-Point Capacitive Touchscreen with Antibacterial Properties
Audio Speaker, Stereo Speaker, Earphone Jack
Network Connectivity Optional
WiFi Supports 802.11 a/b/g/n/ac Dual-band 2.4GHz & 5GHz
Video Capabilities • 4K H.264 and 10bits 60fps H.264 Video Decode, • 1080P multi video decode
Audio Capabilities Supports MP3, WAV, WMA 9/Pro, OGG, FLAC, AAC, AMR-NB/-WB
Speaker / Microphone 8Ω/3W / Built-in Mic
Camera 2MP CMOS Front Camera
Connectivity RJ45, RJ11, NFC, RFID Card Slot, Telephone Connector
RFID (Optional) • NFC Forum Tag Type 1, 2, 3, 4, PicoPass and MIFARE Classic • Jewel Cards (106 kbps, Type 1) • MIFARE UltraLight (106 kbps, Type 2) • FeliCa (212 kbps & 424 kbps, Type 3) • ISO14443-A&B T=CL Contactless Smart Cards (Type 4) • PicoPass Tag (106 kbps) • MIFARE Classic 1K/4K (106 kbps)
USB / Data Ports USB Host, Mini USB
Control Buttons Power, Home, Back, VOL-, VOL+, Channel+, Channel-, Reading Light
Power DC IN, DC ADAPTOR
Mounting VESA 75mm × 75mm
Medical Features Nurse Call, Handset (Optional), Antibacterial Housing
IP Rating Front Panel IP65
